XTS26 3-Circuit LED Tracklight


XTS26 3-Circuit LED Tracklight

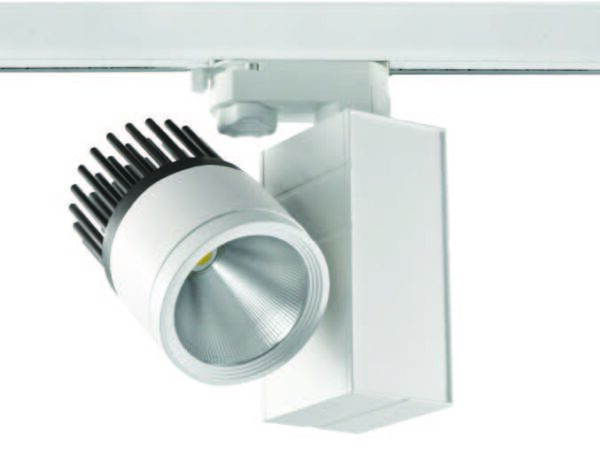

Track mounted led spotlight with integral driver and three circuit track adaptor. Manufactured with a single 26W Japanese made LED with a high colour rendering index of 90+ and high COB lumen outputs of 2615Lm (3000K), 2690Lm (4000K) and 2765Lm (5000K).

Fully adjustable design with 350° rotation and 180° tilt. Anodized black heatsink provides effective thermal management ensuring high output and long lifespan.

Input Voltage: 240V
System Power 26.4W
LED Power: 25W
Lamp Type: LED
IP Rating: IP20
Tilt-Angle: 180°
Rotation: 350°
Weight: 900g
Beam Angles: Wide | Medium | Narrow
Finishes: White | Black
**Please note your desired finishing (white/black) when checking out.**

XTS26 Accessories
• DALI Track Connector
• Heatsink Sleeve
• Surface Mount



XTS26 3-Circuit LED Tracklight Technical Specifications

COB Lumen Output
3000K – 2615 lm | 4000K – 2690 lm | 5000K – 2765 lm
Efficacy 62.0 lm/W Wide Beam
Lifetime 50,000hrs (L70)
Power Factor > 0.94
Input Voltage 100V – 240V AC 50/60 Hz
Protection Thermal and Short Circuit
Dimming DALI 1-10V

Please contact us for more details on accessories & large volume orders.

Additional information

Dimensions 135 × 75 × 130 mm

Room Type

, , , , , , , , ,




Globe Type

Globe Included

Beam Angle

, ,

Colour Temp

, ,



XTS26 3-Circuit LED Tracklight
