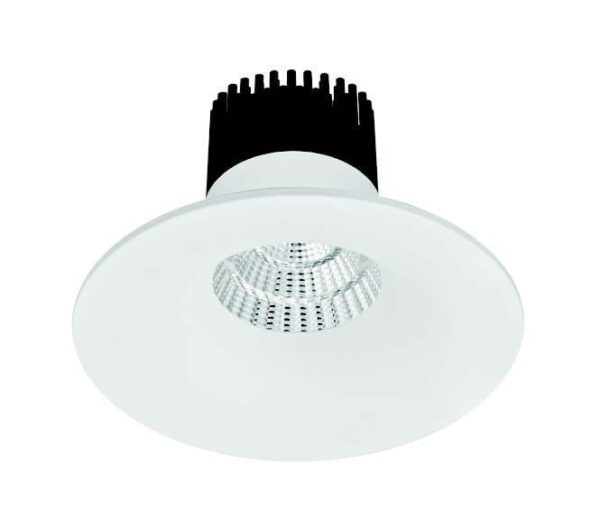

XDM26 Recessed Adjustable LED Downlight


XDM26 Recessed Adjustable LED Downlight

Recessed adjustable LED downlight featuring a single 26 watt Japanese made COB. Available in 3000K, 4000K and 5000K colour temperature options with a high colour rendering index (CRI) of 90+ and high lumen outputs of 3035Lm (3000K), 3170Lm (4000K) and 3205Lm (5000K).

CAD designed vacuum metalised reflector produces uniform light distribution and a luminaire efficacy of 78.5 lm/W. Sealed face with silicone gasket provides increased ingress protection and anodized black heatsink provides effective thermal management ensuring continued high lumen output and
long lifespan.

Input Voltage: 240V
System Power: 26.4W
LED Power: 26W
Lamp Type: LED
IP Rating: IP44
Cut-Out: 120mm
Tilt-Angle: 40°
Weight: 950g
Beam Angles: Wide | Medium | Narrow
Finishes: White | Black | Silver
**Please note your desired finishing (white/black/silver) when checking out.**



XDM26 Recessed Adjustable LED Downlight Technical Specifications

COB Lumen Output
3000K – 3035 lm | 4000K – 3170 lm | 5000K – 3205 lm
Total Luminous Flux
1954 WB | 2041 WB | 2063 WB
Efficacy 78.5 lm/W Wide Beam
Lifetime 50,000hrs (L70)
Power Factor
Input Voltage
> 0.94
100V – 240V AC 50/60 Hz
Thermal and Short Circuit
Dimming DALI 1-10V

Contact us for more details on large volume orders.

Additional information

Dimensions 150 × 120 mm
Cut out size

Room Type

, , , , , , , , ,



, ,


Globe Type

Beam Angle

Colour Temp

, ,


Globe Included
