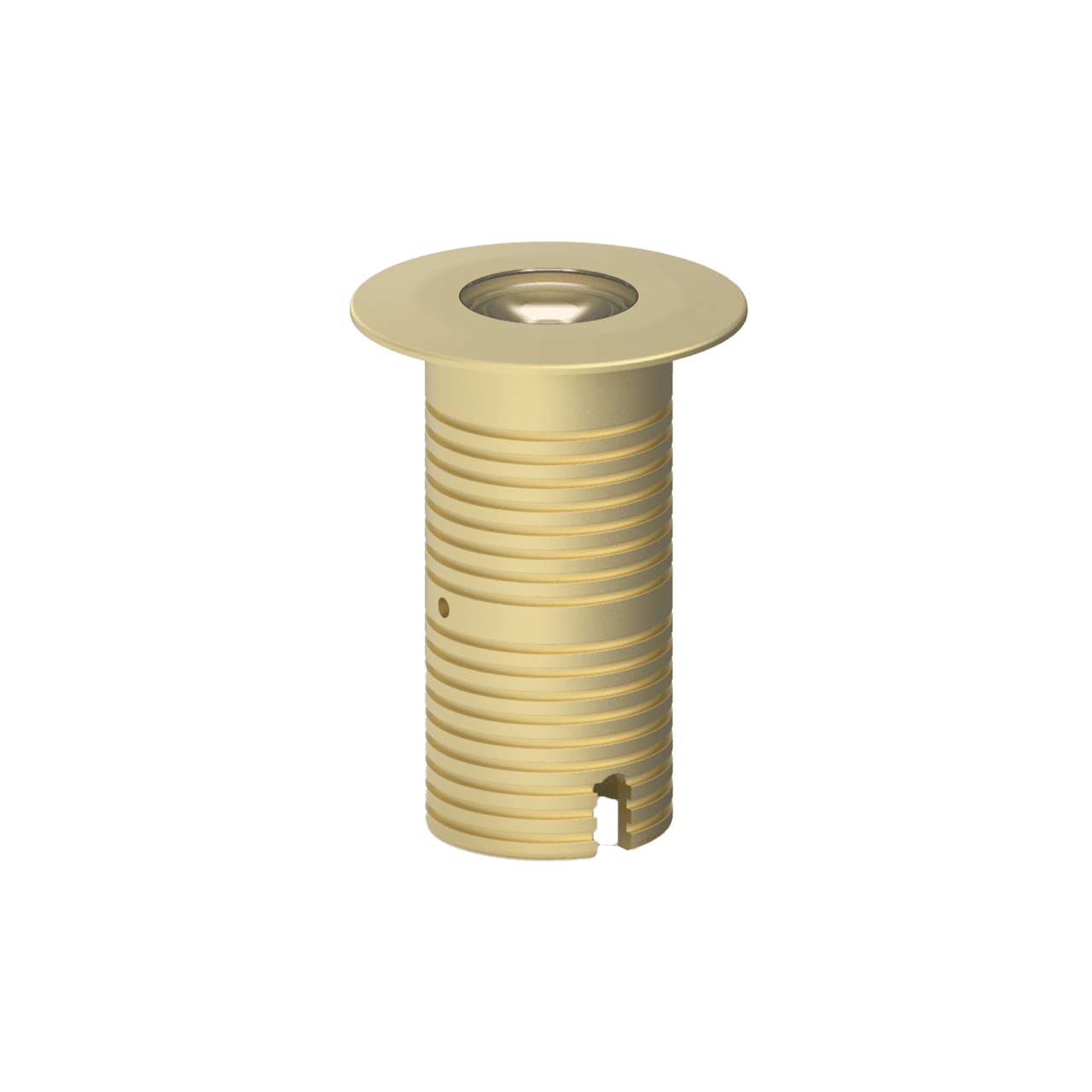

AQL-530 Uplight

$462.00$504.00

AQL-530 Uplight

Sharing many of the same components as the AQL-540, the AQL-530 is designed to withstand the worst conditions nature can offer.
Solid cast brass with 5 finish options and epoxy encapsulated internals the AQL-530 is suitable for any application that requires the best in reliability and performance.
Manufactured in Australia.

Integrated LED Globe:
4W / 400lm 2700k 300mA | 7W / 550lm 2700k 550mA
4W / 400lm 3000k 300mA | 7W / 550lm 3000k 550mA
4W / 400lm 5700k 300mA | 7W / 550lm 5700k 550mA
7W / 160lm Blue 470nm
7W / 280lm Red 630nm
7W / 420lm Green 530nm
7W / 320lm Amber 585nm

Finish: Brushed Chrome / Black / Aged Brass / Copper / Natural Brass
Construction Material: Solid Cast Brass
IP Rating: IP68
Power: 4W & 7W – 12-24VAC 24V DC / 7W 24VAC Triac Dimmable
Dimmable: Optional 10V PWM (DC) / Yes 24VAC Triac Primary Side
Cable: 1M Aqualux PLUS QuickConnect
Optical: Narrow (10°) / Medium (25°) / Wide (40°) / Diffuse (Frosted) / Wall Washer – Cut off / Asymmetric – Billie Lens
5 Year Aqualux Warranty

Dimensions:
Length. 80mm
Width. 80mm
Height. 108mm

Contact us for more details.

Clear
Compare

Description

AQL-530 Uplight

Sharing many of the same components as the AQL-540, the AQL-530 is designed to withstand the worst conditions nature can offer.
Solid cast brass with 5 finish options and epoxy encapsulated internals the AQL-530 is suitable for any application that requires the best in reliability and performance.
Manufactured in Australia.

Integrated LED Globe:
4W / 400lm 2700k 300mA | 7W / 550lm 2700k 550mA
4W / 400lm 3000k 300mA | 7W / 550lm 3000k 550mA
4W / 400lm 5700k 300mA | 7W / 550lm 5700k 550mA
7W / 160lm Blue 470nm
7W / 280lm Red 630nm
7W / 420lm Green 530nm
7W / 320lm Amber 585nm

Finish: Brushed Chrome / Black / Aged Brass / Copper / Natural Brass
Construction Material: Solid Cast Brass
IP Rating: IP68
Power: 4W & 7W – 12-24VAC 24V DC / 7W 24VAC Triac Dimmable
Dimmable: Optional 10V PWM (DC) / Yes 24VAC Triac Primary Side
Cable: 1M Aqualux PLUS QuickConnect
Optical: Narrow (10°) / Medium (25°) / Wide (40°) / Diffuse (Frosted) / Wall Washer – Cut off / Asymmetric – Billie Lens
5 Year Aqualux Warranty

Dimensions:
Length. 80mm
Width. 80mm
Height. 108mm

Contact us for more details.

Additional information

Dimensions 80 × 108 × 80 mm
Colour

, , , ,

Material

Room Type

, , , , ,

Style

Globe Type

Globe Included

Wattage

,

Colour Temp

, , , , , ,

Voltage

,

Optical Lens

Narrow (10°), Medium (25°), Wide (40°), Diffuse (Frosted), Wall Washer – Cut off, Asymmetric – Billie Lens

Dimmable

None, 4W-7W Optional 10V PWM (DC), 7W 24VAC Triac Primary Side
